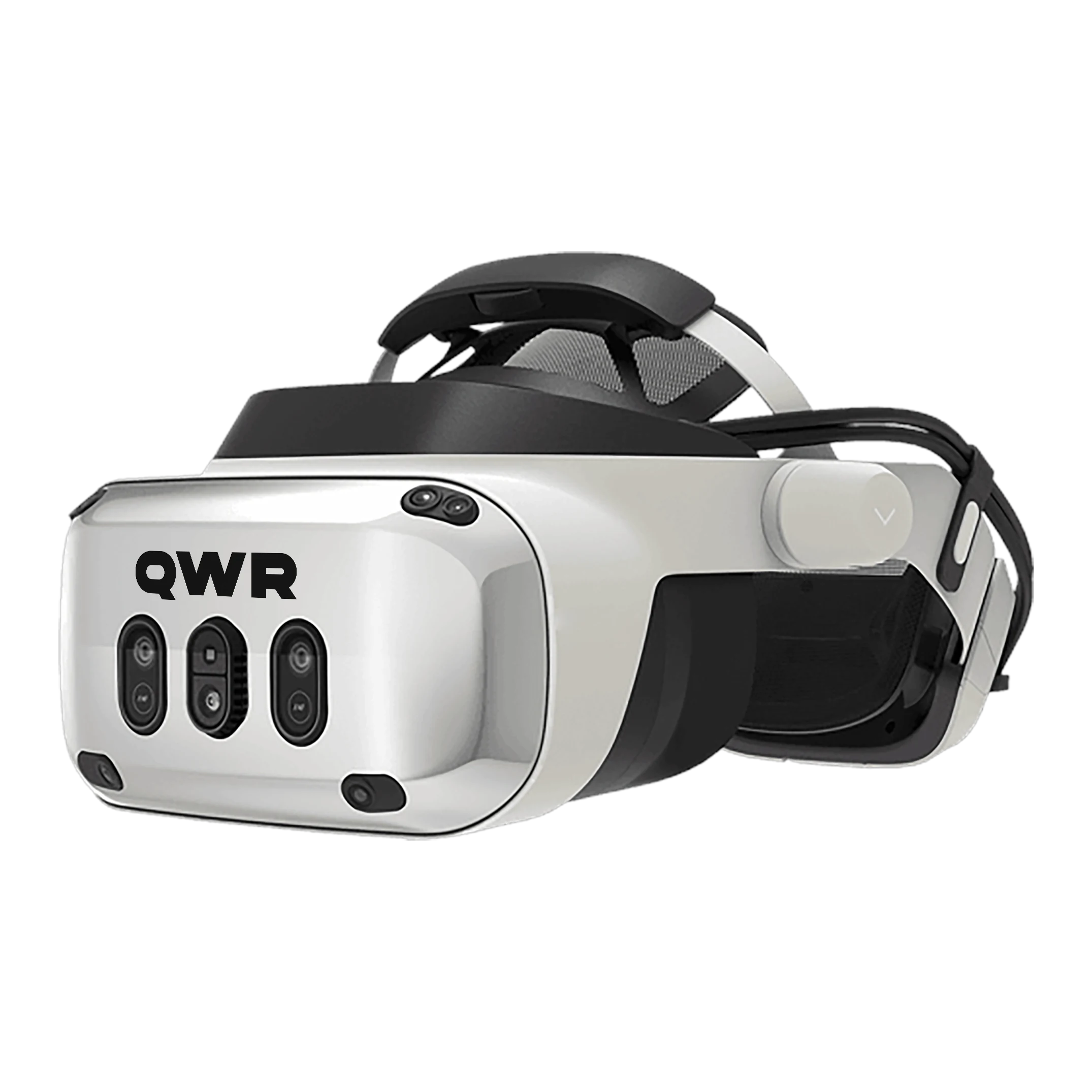

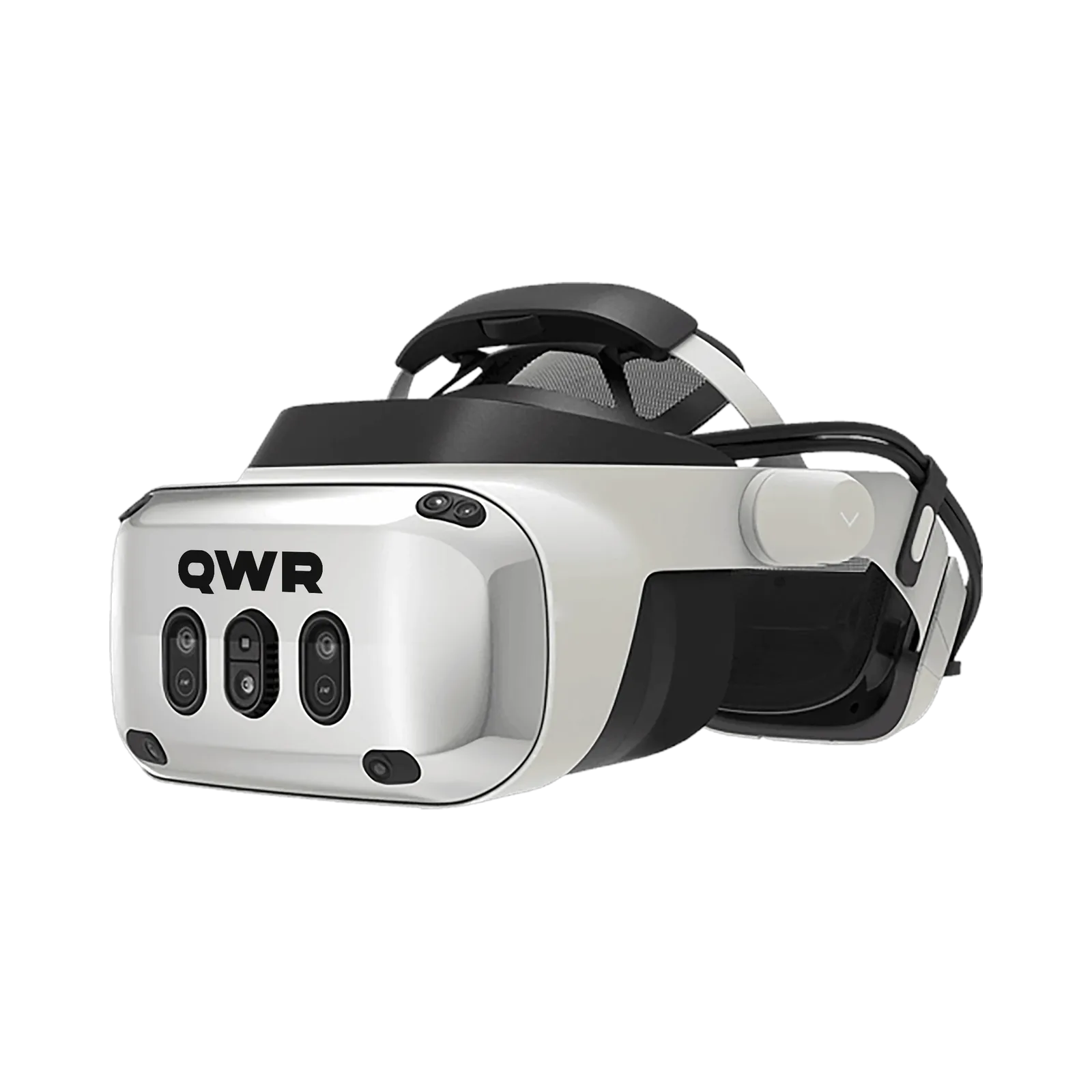

XR — 6DoF Tethered
QXR-06-08
PC-tethered XR. Mini-LED 7488×3840, 120 Hz, 120° FoV, dual 20 MP passthrough.
01 · Position in category
QXR-06-08 is the sole SKU in QWR's PC-tethered 6DoF XR bucket — there are no sibling SKUs to compare against. It has no onboard SoC listed in the catalog, consistent with its PC-GPU-driven, tethered design. Its Mini-LED 7488×3840 display at 120 Hz and 120° FoV is the only Mini-LED panel across QWR's full 36-SKU catalog, and its Sensors row is the only one in that catalog to list LiDAR.
02 · Compute
| Processor | - |
| Memory | - |
| Storage | - |
No onboard SoC is listed anywhere in this spec group — QXR-06-08 is PC-GPU-driven, consistent with its tethered form factor rather than an onboard SoC.
03 · Display
| Display Type | Mini-LED |
| Resolution | 7488 x 3840 |
| Refresh Rate | 120 Hz |
| Field of View (FoV) | 120° |
| Optics | Aspheric lenses |
| Screen Size | - |
Mini-LED is the display technology here — the only Mini-LED panel across QWR’s full 36-SKU catalog; every other headset and glasses SKU runs Fast LCD, pancake LCD, or Micro-OLED.
04 · Interpupillary Distance (IPD)
| Compatibility Range | 56-72mm |
| IPD Adjustment | Automatic |
05 · Tracking & Sensing
| Tracking Cameras | 3 |
| Passthrough Camera | Dual 20 MP Cameras with RGB Passtrhough |
| Passthrough Resolution | 33 PPD |
| Sensors | 3-axis Gyro / 3-axis ACCL sensor / LiDAR |
| Infrared | - |
| Eye Tracking | Supported |
| Distance Sensing | Supported |
| Hand Tracking | Supported |
LiDAR appears in the Sensors row alongside gyro and accelerometer — the only SKU in the full catalog with LiDAR disclosed, combined here with eye tracking, distance sensing, and hand tracking all supported in the same spec row.
06 · Input & Control
| Controller Count | 2 |
| Controller Type | 6DoF Controllers |
| Controller Charge | External Batteries |
| Voice Control | - |
07 · Connectivity
| Wi-Fi | Supported |
| Bluetooth | Supported |
| Interface | Display Port Cable / USB-C |
| Wireless Operation | No |
08 · PC & Streaming
| PC Streaming Wireless | No |
| PC Streaming Wired | Supported |
| PC Client Application | Supported |
| Screen Mirroring | Supported |
09 · Audio
| Output | 3D Spatial Audio Supported |
| Speakers | Integrated surround speakers |
| Microphones | Built-in |
| 3.5 mm Audio Jack | - |
10 · Battery
| Battery Solution | - |
| Battery | - |
| Controller Battery | External Batteries |
11 · Design
| Ergonomics | Light Weight |
| Touch Pad | - |
| Memory Card Slot | - |
| Weight | - |
| Weight Distribution | Weight Distributed |
| Diopter Adjustment | - |
