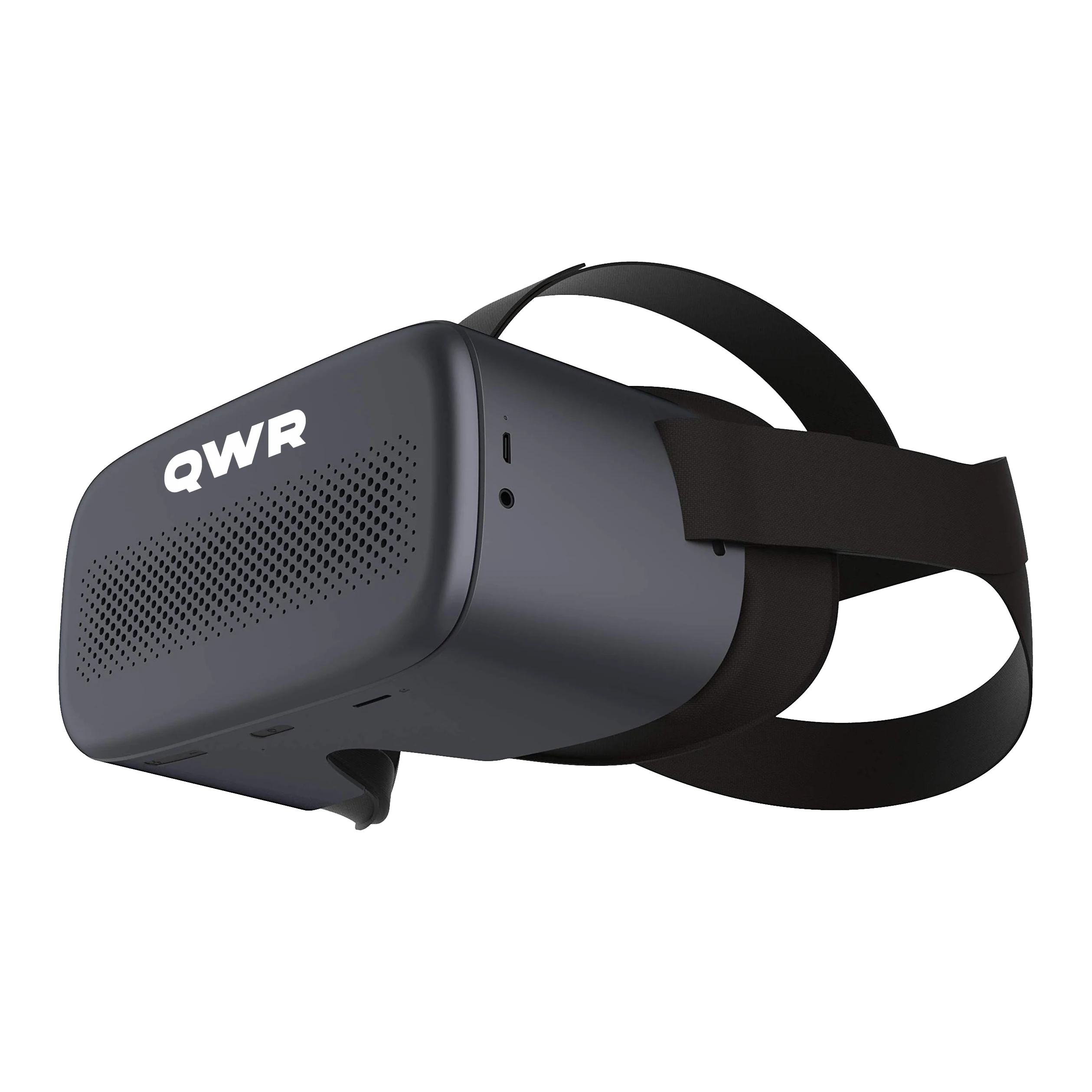

XR — 6DoF All-In-One
QXR-06-01
Standalone 6DoF XR. Dual passthrough, hand tracking, 8 GB, 490 g.
01 · Position in category
QXR-06-01 sits in QWR's 6DoF standalone XR bucket alongside seven sibling SKUs, all reference platforms for design review and spatial rehearsal. It runs Snapdragon XR2 Gen 1 with 8 GB / 128 GB — the same compute tier as QXR-06-05 — paired with a Fresnel-lens display, dual passthrough cameras with distance sensing, and a 5500 mAh battery at 490 g.
02 · Compute
| Processor | Snapdragon® XR2 Gen 1 |
| Memory | 8 GB |
| Storage | 128 GB |
Snapdragon XR2 Gen 1 with 8 GB / 128 GB ties QXR-06-05 for this bucket’s entry standalone compute tier — QXR-06-03 steps up to XR2 Gen 2 with 16 GB, and QXR-06-04/06/07 move to XR2+ Gen 2.
03 · Display
| Display Type | Fast LCD |
| Resolution | 3664 x 1920 |
| Refresh Rate | 90Hz |
| Field of View (FoV) | 96° |
| Optics | Fresnel Lens |
| Screen Size | - |
Fresnel-lens display, shared display type across most of this bucket — only the pancake Micro-OLED models (QXR-06-06, QXR-06-07) use a different optical stack.
04 · Interpupillary Distance (IPD)
| Compatibility Range | 58mm / 63mm / 68mm |
| IPD Adjustment | Automatic |
05 · Tracking & Sensing
| Tracking Cameras | 4 x greyscale global shutter cameras |
| Passthrough Camera | 2 |
| Passthrough Resolution | - |
| Sensors | 3-axis Gyro / 3-axis ACCL sensor |
| Infrared | - |
| Eye Tracking | - |
| Distance Sensing | Supported |
| Hand Tracking | Supported |
Distance sensing is supported here, a feature shared with only three other SKUs in this 8-model bucket — QXR-06-04, QXR-06-06, and QXR-06-07.
06 · Input & Control
| Controller Count | 2 |
| Controller Type | 6 DoF Controller |
| Controller Charge | External Batteries |
| Voice Control | - |
07 · Connectivity
| Wi-Fi | Supported |
| Bluetooth | Supported |
| Interface | USB-C |
| Wireless Operation | Yes |
08 · PC & Streaming
| PC Streaming Wireless | Supported |
| PC Streaming Wired | Supported |
| PC Client Application | Yes |
| Screen Mirroring | Supported |
09 · Audio
| Output | Dual Speakers |
| Speakers | Integrated surround speakers |
| Microphones | Built-in |
| 3.5 mm Audio Jack | - |
10 · Battery
| Battery Solution | Internal Battery |
| Battery | 5500 mAh |
| Controller Battery | External AAA Batteries |
5500 mAh ties QXR-06-04 and QXR-06-05 for the largest disclosed battery in the bucket, ahead of the flagship QXR-06-07’s mixed internal/external 5060 mAh.
11 · Design
| Ergonomics | Battery at the Back |
| Touch Pad | - |
| Memory Card Slot | - |
| Weight | 490 gms |
| Weight Distribution | Weight Distributed |
| Diopter Adjustment | - |
12 · Across the category
| QXR-06-01 | QXR-06-02 | QXR-06-03 | QXR-06-04 | QXR-06-05 | QXR-06-06 | QXR-06-07 | QXR-06-10 | |
|---|---|---|---|---|---|---|---|---|
| SoC | Snapdragon® XR2 Gen 1 | Snapdragon® XR2 Gen 1 | Snapdragon® XR2 Gen 2 | Snapdragon® XR2+ Gen 2 | Snapdragon® XR2 Gen 1 | Snapdragon® XR2+ Gen 2 | Snapdragon® XR2+ Gen 2 | Snapdragon® XR2 Gen 2 |
| Camera | — | — | — | — | — | — | — | — |
| Display | Fast LCD | Fast LCD | Fast LCD | Fast LCD | Fast LCD | Micro-OLED | Micro-OLED | Fast LCD |
| Battery | 5500 mAh | >4000 mAh | >5000 mAh | 5500 mAh | 5500 mAh | — | 5060 mAh | 6000 mAh |
| Weight | 490 gms | 500 gms | 500 gms | 540 gms | 450 gms | 235 gms | 650 g | <430 gms (incl. headband, face mask) |
