VR — 3DoF Tethered

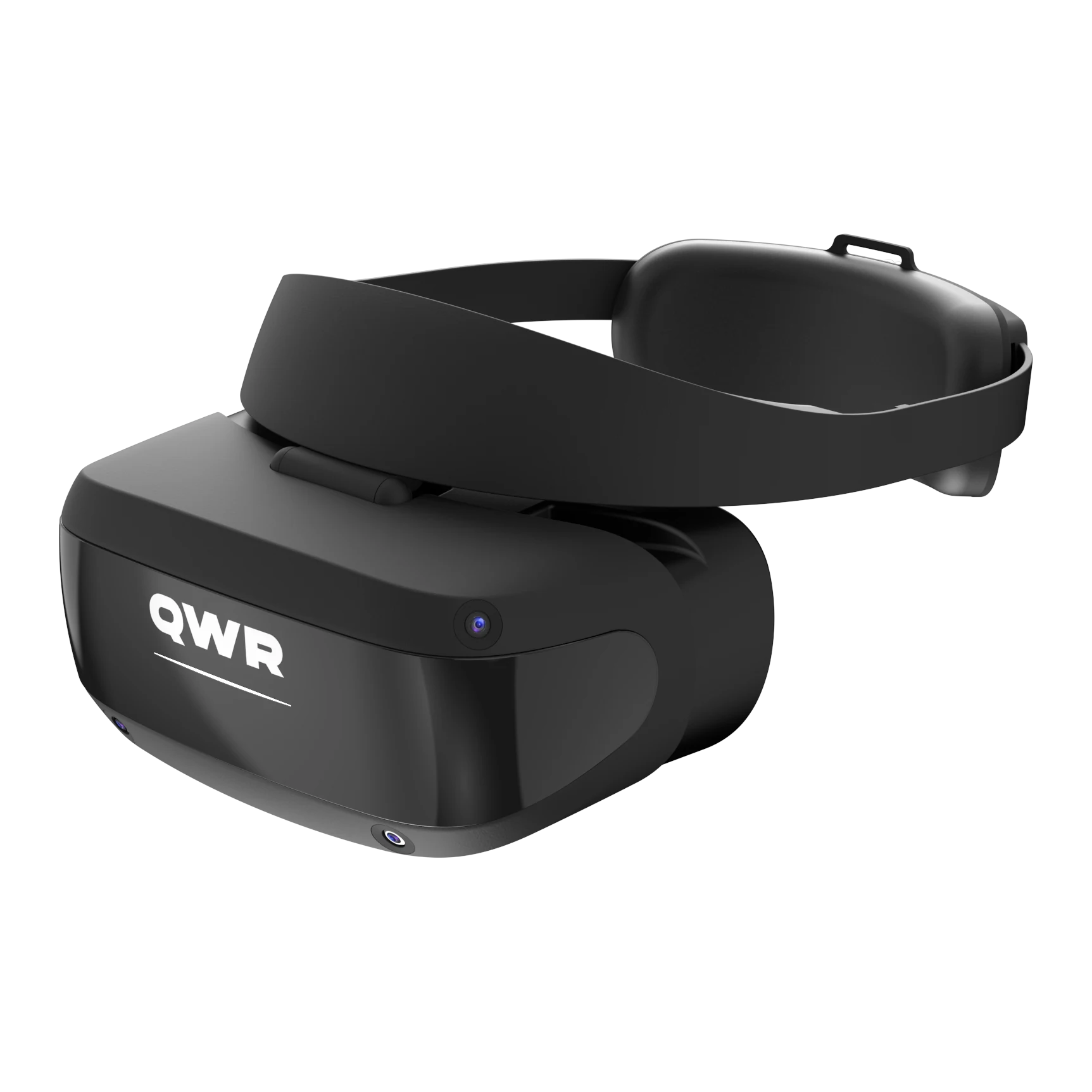

QVR-06-02
3DoF PC-tethered VR. DisplayPort + USB-A, 72/90 Hz, 116° FoV, 450 g.
01 · Position in category
QVR-06-02 sits in QWR's 3DoF PC-tethered VR bucket alongside one sibling, QVR-03-05. Both are host-GPU-driven with no onboard compute row, a 5.46-inch Fast LCD panel at 3664×1920, and automatic IPD across 53–73 mm. QVR-06-02 runs a wider 116° FoV at a variable 72/90 Hz, against QVR-03-05's fixed 72 Hz and 110° FoV, and is the only one of the pair with audio: integrated speakers, a microphone, and a 3.5 mm jack. It connects over DisplayPort + USB-A where QVR-03-05 uses HDMI + USB-A, and at 450 g is the heavier of the two.
02 · Compute
| Processor | - |
| Memory | - |
| Storage | - |
03 · Display
| Display Type | Fast LCD |
| Resolution | 3664 x 1920 |
| Refresh Rate | 72/90 Hz |
| Field of View (FoV) | 116° |
| Optics | Fresnel Lens |
| Screen Size | 5.46" |
72/90 Hz variable refresh and 116° FoV — QVR-03-05, the only other SKU in this bucket, is fixed at 72 Hz and 110° FoV on the same panel size and resolution.
04 · Interpupillary Distance (IPD)
| Compatibility Range | 53 -73mm |
| IPD Adjustment | Automatic |
05 · Tracking & Sensing
| Tracking Cameras | - |
| Passthrough Camera | - |
| Passthrough Resolution | - |
| Sensors | GyTo / ACCL sensor |
| Infrared | - |
| Eye Tracking | - |
| Distance Sensing | - |
| Hand Tracking | - |
06 · Input & Control
| Controller Count | 0 |
| Controller Type | - |
| Controller Charge | - |
| Voice Control | - |
07 · Connectivity
| Wi-Fi | - |
| Bluetooth | - |
| Interface | Display Port Cable / USB-A |
| Wireless Operation | No |
DisplayPort Cable + USB-A — QVR-03-05 uses HDMI Cable + USB-A instead.
08 · PC & Streaming
| PC Streaming Wireless | - |
| PC Streaming Wired | Yes |
| PC Client Application | Yes |
| Screen Mirroring | Yes |
09 · Audio
| Output | Yes |
| Speakers | Integrated surround speakers |
| Microphones | Built-in |
| 3.5 mm Audio Jack | Supported |
Output is marked 'Yes', with integrated speakers, a built-in microphone, and a 3.5 mm jack. QVR-03-05 has none of these.
10 · Battery
| Battery Solution | - |
| Battery | - |
| Controller Battery | - |
11 · Design
| Ergonomics | Light Weight |
| Touch Pad | - |
| Memory Card Slot | - |
| Weight | 450 gms |
| Weight Distribution | Weight Distributed |
| Diopter Adjustment | - |
450 g — the heavier of the two SKUs in this bucket; QVR-03-05 is 313 g.
12 · Across the category
| QVR-06-02 | QVR-03-05 | |
|---|---|---|
| SoC | — | — |
| Camera | — | — |
| Display | Fast LCD | Fast LCD |
| Battery | — | — |
| Weight | 450 gms | 313 gms |
